用途:
|
DZl5L系列漏电断路器适用于交流380V及以下，频率为50Hz，额定电流为125A及以下电路中作为配电线路和电动机的过载、短路和漏电保护以及供电系统负荷控制用，亦可作为线路的不频繁转换之用。
过电流脱扣器采用电磁油阻尼脱扣器，时间一电流特性基本不受环境温度影响，动作稳定性好，使用范围广泛，特别适合于温差变化较大的地区使用。
内阻小功耗低，具有明显节能效果。短路分断能力高，漏电动作时间有快速型或延时型，适宜于用作低压供电系统的漏电分级保护开关。
|
| 符合标准号 : |
GB6829 IEC755 GB14048.2 IEC947-2 |
型号说明:
基本参数:Basic Parameter
|
型号
Type |
额定电压
Rated voltage
(V) |
壳架等级
额定电流
Frame size
(A) |
极数
Number
of poles |
过电流脱扣
器额定电流
Rated current
of the release
(A) |
定漏电动作
电流
Rated residual operating current
(mA) |
额定漏电不
动作电流
Rated residual non operating current
(mA) |
额定漏电动作时间
Rated residual operating time at 1△n
(s) |
额定短路分断能力
Rated short-circuit breaking capacity
(A) |
|
DZ15L-40/390
DZ15LE-40/390 |
380 |
40 |
3 |
6,10,,16
20,25,32
40 |
30,50,75 |
15,25,40 |
≤0.1 |
3000 |
|
DZ15L-40G/390
DZ15LE-40G/390 |
10000 |
|
DZ15L-40/490
DZ15LE-40/490 |
220/380 |
4 |
50,75,100 |
25,40,50 |
3000 |
|
DZ15L-40G/490
DZ15LE-40G/490 |
10000 |
|
DZ15L-63/390
DZ15LE-63/390 |
380 |
60 |
3 |
10,16,20
25,32,40
50,63 |
30,50,75 |
15,25,40 |
≤0.1 |
5000 |
|
DZ15L-63G/390
DZ15LE-63G/390 |
10000 |
|
DZ15L-63/490
DZ15LE-63/490 |
220/380 |
4 |
50,75,100 |
25,40,50 |
5000 |
|
DZ15L-63G/490
DZ15LE-63G/490 |
10000 |
|
DZ15LE-100/390 |
380 |
125 |
3 |
80,100,125 |
50
75
100
300 |
25
40
50
150 |
≤0.1
或 or
0.5≤t≤0.7 |
6000 |
|
DZ15LE-100G/390 |
10000 |
|
DZ15LE-100/490 |
220/380 |
4 |
6000 |
|
DZ15LE-100G/490 |
10000 |
过电流保护特性
Over-current protective characteristics
环境温度：－20℃～+55℃
Ambient temperature：－20℃～+55℃
|
产品型号
Type of product |
试验电流
Test current |
试验时间
Test time |
预期试验结果
Results to be obtained |
起始状态
Initial condition |
备注
Remark |
|
DZ15L□-□□/□901
(配电保护用)
（For distribution protection） |
1.05In |
≥1h |
不脱扣 Non tripping |
冷态 Cold |
In≤63A |
|
≥2h |
In>63A |
|
1.30In |
<1h |
脱扣 Tripping |
热态 Hot |
In≤63A |
|
<2h |
In>63A |
|
3.0In |
可返回时间 >2s
Recoverable time >2s |
|
冷态 Cold |
|
|
10.0In |
<0.2s |
脱扣 Tripping |
冷态 Cold |
|
|
DZ15L□-□□/□902
(电动机保护用)
(For motor protection) |
1.05In |
≥2h |
不脱扣 Non tripping |
冷态 Cold |
|
|
1.20In |
<2h |
脱扣 Tripping |
热态 Hot |
|
|
1.50In |
<2min |
脱扣 Tripping |
热态 Hot |
|
|
6.0In |
可返回时间 >1s
Recoverable time >1s |
|
冷态 Cold |
|
|
12.0In |
<0.2s |
脱扣 Tripping |
冷态 Cold |
|
|
DZ15L□-□□/□903
(电力负荷控制用)
(For load control in power system) |
1.05In |
≥1h |
不脱扣 Non tripping |
冷态 Cold |
|
|
1.20In |
2min |
脱扣 Tripping |
热态 Hot |
|
|
3.0In |
10s |
脱扣 Tripping |
冷态 Cold |
|
|
12.0In |
<0.2s |
脱扣 Tripping |
冷态 Cold |
|

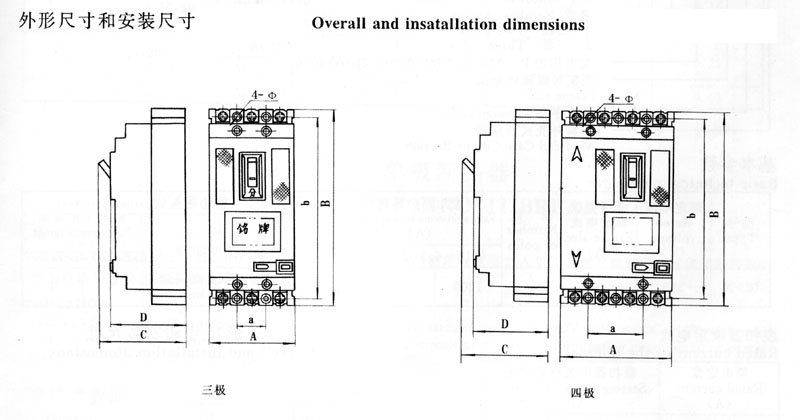

外形尺寸和安装尺寸:
|
型号
Type |
极数
Number of poles |
外形尺寸
Overall dimensions |
安装尺寸
Installation dimensions |
|
A |
B |
C |
D |
a |
b |
安装孔
INstalling hole |
|
DZ15L-40
DZ15LE-40 |
3 |
78 |
194 |
88 |
73.5 |
25 |
180 |
4-5 |
|
4 |
103 |
194 |
88 |
73.5 |
50 |
180 |
4-5 |
|
DZ15L-63
DZ15LE-63 |
3 |
96 |
227 |
95 |
80 |
30 |
210 |
4-7 |
|
4 |
126 |
227 |
95 |
80 |
60 |
210 |
4-7 |
|
DZ15LE-100 |
3 |
96 |
227 |
95 |
80 |
30 |
210 |
4-7 |
|
4 |
126 |
227 |
95 |
80 |
60 |
210 |
4-7 |
|
