Applications :
|
DZ15 series Moulded Case Circuit Breakers are suitable for AC 50Hz 380V circuit with rated current up to 125A,used for protection against overload,short-circuit of distribution circuit and motors, and for load control in power system, as well as for unfrequent switchover of circuits.This product adopts oil-damping electromagnetic release,so the time-current characteristics are more reliable,more steady,and hardly effected by ambient temperature,especially suitable for the areas with large temperature difference in four seasons.It shows obvious energy-saving effect because of its lower inner resistance and power loss.High interrupting capacity 1OkA makes G type MCCB to be used in more wide scope. |
| Reference standards: |
GB14048.2 IEC947-2 |

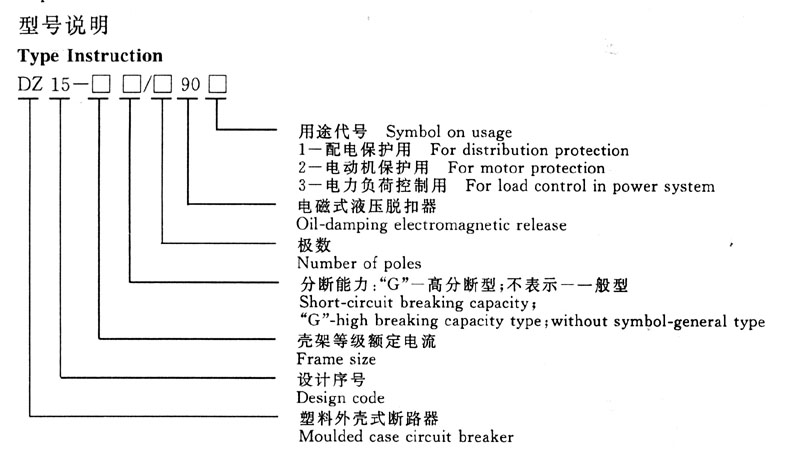

型号说明:
技术数据:Technical Data
基本参数:Basic Parameter
|
型号
Type |
壳架等级
额定电流
Frame size
(A) |
极数
Number
of poles |
脱扣
器额定电流
Rated current
of release
(A) |
额定短路分断能力
Rated short-circuit breaking capacity
(A) |
机电寿命次数
Mechanical and electrical endurance |
|
DZ15-40/□90□ |
40 |
1，2，3，4 |
6，10，16，20，25，32，40 |
3000 |
10000 |
|
DZ15-40G/□90□ |
10000 |
|
DZ15-63/□90□ |
63 |
1，2，3，4 |
6，10，16，20，25，32，40，50，63 |
5000 |
10000 |
|
DZ15-63G/□90□ |
10000 |
|
DZ15-100/□90□ |
125 |
3，4 |
80，100，125 |
6000 |
10000 |
|
DZ15-100G/□90□ |
10000 |
过电流保护特性:Over-current protective characteristics
环境温度：－20℃～+55℃
Ambient temperature：－20℃～+55℃
|
产品型号
Type of product |
试验电流
Test current |
试验时间
Test time |
预期试验结果
Results to be obtained |
起始状态
Initial condition |
备注
Remark |
|
DZ15-□□/□901
(配电保护用)
（For distribution protection） |
1.05In |
≥1h |
不脱扣 Non tripping |
冷态 Cold |
In≤63A |
|
≥2h |
In>63A |
|
1.30In |
<1h |
脱扣 Tripping |
热态 Hot |
In≤63A |
|
<2h |
In>63A |
|
3.0In |
可返回时间 >2s
Recoverable time >2s |
|
冷态 Cold |
|
|
10.0In |
<0.2s |
脱扣 Tripping |
冷态 Cold |
|
|
DZ15-□□/□902
(电动机保护用)
(For motor protection) |
1.05In |
≥2h |
不脱扣 Non tripping |
冷态 Cold |
|
|
1.20In |
<2h |
脱扣 Tripping |
热态 Hot |
|
|
1.50In |
<2min |
脱扣 Tripping |
热态 Hot |
|
|
6.0In |
可返回时间 >1s
Recoverable time >1s |
|
冷态 Cold |
|
|
12.0In |
<0.2s |
脱扣 Tripping |
冷态 Cold |
|
|
DZ15-□□/□903
(电力负荷控制用)
(For load control in power system) |
1.05In |
≥1h |
不脱扣 Non tripping |
冷态 Cold |
|
|
1.20In |
2min |
脱扣 Tripping |
热态 Hot |
|
|
3.0In |
10s |
脱扣 Tripping |
冷态 Cold |
|
|
12.0In |
<0.2s |
脱扣 Tripping |
冷态 Cold |
|

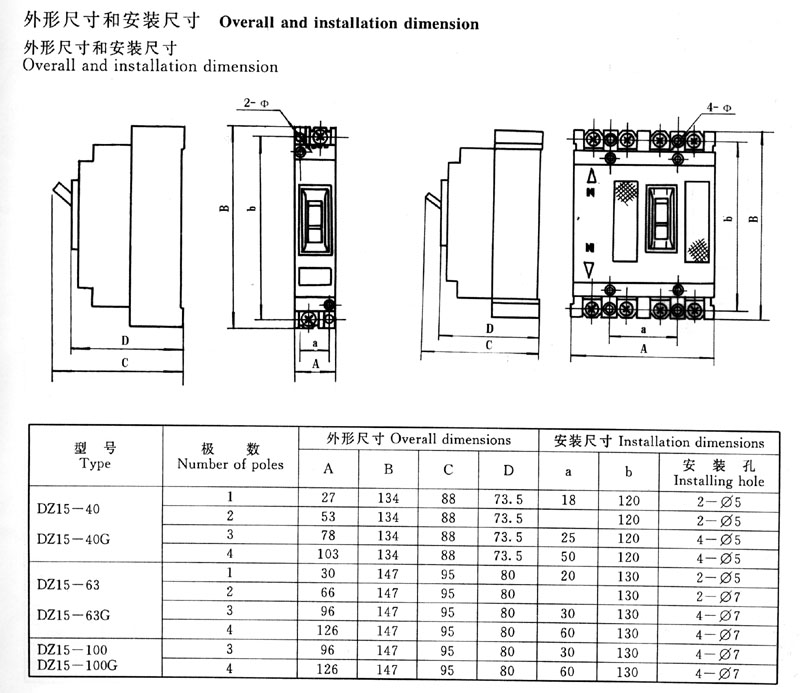

外形尺寸和安装尺寸:
|
型号
Type |
极数
Number of poles |
外形尺寸
Overall dimensions |
安装尺寸
Installation dimensions |
|
A |
B |
C |
D |
a |
b |
安装孔
Installing hole |
|
DZ15-40
DZ15-40G |
1 |
27 |
134 |
88 |
73.5 |
18 |
120 |
2-5 |
|
2 |
53 |
134 |
88 |
73.5 |
|
120 |
2-5 |
|
3 |
78 |
134 |
88 |
73.5 |
25 |
120 |
4-5 |
|
4 |
103 |
134 |
88 |
73.5 |
50 |
120 |
4-5 |
|
DZ15-63
DZ15-63G |
1 |
30 |
147 |
95 |
80 |
20 |
130 |
2-5 |
|
2 |
66 |
147 |
95 |
80 |
|
130 |
2-7 |
|
3 |
96 |
147 |
95 |
80 |
30 |
130 |
4-7 |
|
4 |
126 |
147 |
95 |
80 |
60 |
130 |
4-7 |
|
DZ15-100
DZ15-100G |
3 |
96 |
147 |
95 |
80 |
30 |
130 |
4-7 |
|
4 |
126 |
147 |
95 |
80 |
60 |
130 |
4-7 |
|
