Application
| 3KB1 Series Miniature Circuit Breakers are suitable for protection against over load and short circuit in AC 230/400V,50(60)Hz circuits with rated current up to 1OOA, as well as for unfrequent switchover of circuits and motors under normal conditions. Technical features of 3KB1 Miniature Circuit Breakers:high short-circuit breaking capacity; excellent current-limiting properties; full enclosed terminals with high safety; power terminal connected with rigid bar or flexible wire, pleasing outward appearance; mounted with rails; low power loss and obvious energy-saving effect. They can be especially used in distribution system of modern buildings and in modular terminal apparatus combination units |
|
Patent No. in China |
ZL96223154.1 |
Reference standards |
GB10963 |
IEC60898 |

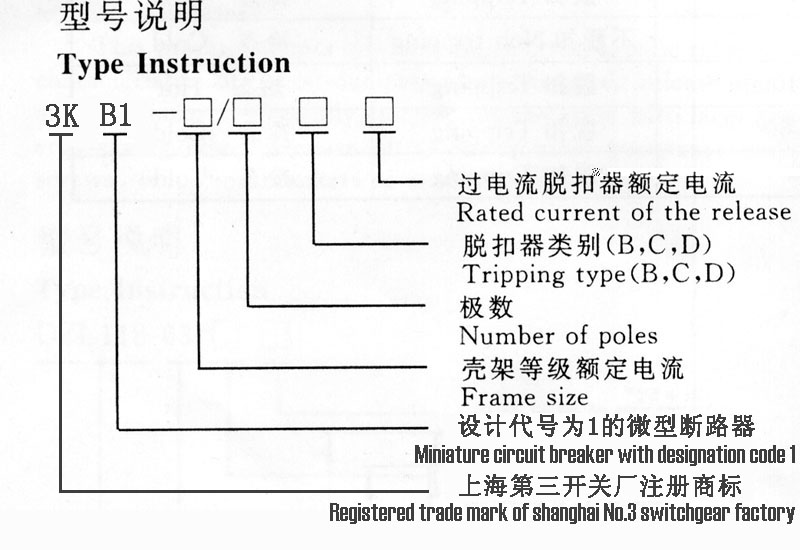

型号说明:
Type Instruction
主要技术参数:
Main technical parameters
|
型号
Type |
壳架等级额定电流
Frame size
(A) |
极数
Number of poles |
额定电压（V）
Rated voltage |
脱扣器额定电流
Rated current of release
（A） |
额定断路分断能力
Rated short-circuit breaking capacity
(A) |
|
3KB1-63 |
63 |
1P,1P+N,2P |
230 |
6,10,16,20,25
32,40,50,63 |
10000
6000 |
|
3P,3P+N,4P |
230/400 |
|
3KB1-100 |
100 |
1P,1P+N,2P |
230 |
50,63,80,100 |
10000
6000 |
|
3P,3P+N,4P |
230/400 |
时间－电流特性: Time current operating characteristics
基准温度：＋30＋5℃
Calibration temperature：＋30＋5℃
|
型号
Type |
脱扣器型式
Type of release |
脱扣器额定电流
Rated current of release |
试验电流
Test current |
脱扣或不脱扣极限时间
Limits of tripping or non tripping time |
预期结果
Results to be obtained |
起始状态
Initial condition |
|
a |
B,C,D |
In >63A |
1.13In |
t≥2h |
不脱扣
non tripping |
冷态
Cold |
|
In≤63A |
t≥1h |
|
b |
B,C,D |
In >63A |
1.45In |
t <2h |
脱扣
tripping |
紧接序a试验
Immediately following test a |
|
In≤63A |
t <1h |
|
c |
B,C,D |
In >32A |
2.55In |
1s |
脱扣
tripping |
冷态
Cold |
|
In≤32A |
1s |
|
d |
B |
In≤100A |
3In |
t≥0.1s |
不脱扣
non tripping |
冷态
Cold |
|
C |
5In |
|
D |
10In |
|
e |
B |
In≤100A |
5In |
t <0.1s |
脱扣
tripping |
冷态
Cold |
|
C |
10In |
|
D |
20In |

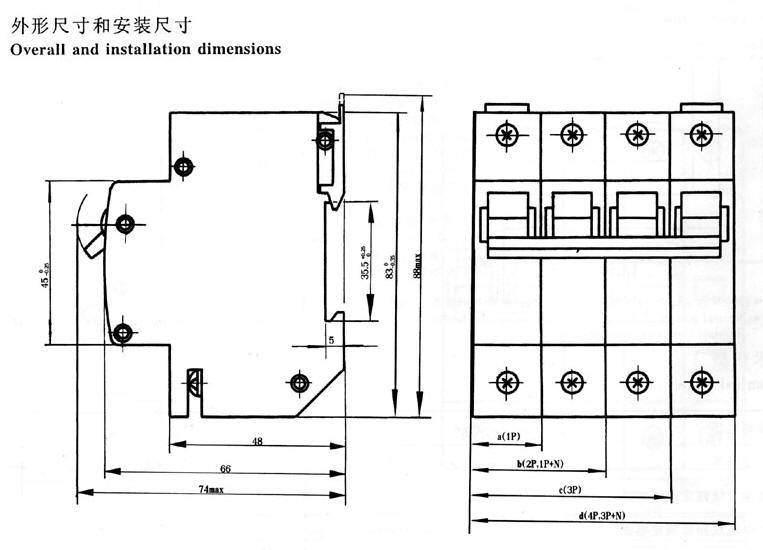

外形尺寸和安装尺寸:
Overall and installation dimensions
|
Main technical parameters
|
|
型号
Type |
a |
b |
c |
d |
|
3KB1-63 |
18 |
36 |
54 |
72 |
|
3KB1-100 |
27 |
54 |
81 |
108 |
|
