Applications ：
| HG6—32 HG6-32 Fuse-disconnectors are suitable for distribution shunt-circuit and motor control circuit with rated voltage 230/400V AC 50Hz, rated current up to 32A, used for power isolation and overcurrent protection. The Fuse-disconnectors adopt rail installtion and modular overall dimensions. The choosed Fuse-Link having cylindrical contact caps is set in the operating handle and rotates together with the handle. Therefore it is artistic in outward appearance and convenient for replacing the fuse-link. They could be widely used in Modular Terminal Apparatus Combination Units. |
|
Reference standards ： |
GB14048.3 ,IEC947-3 |

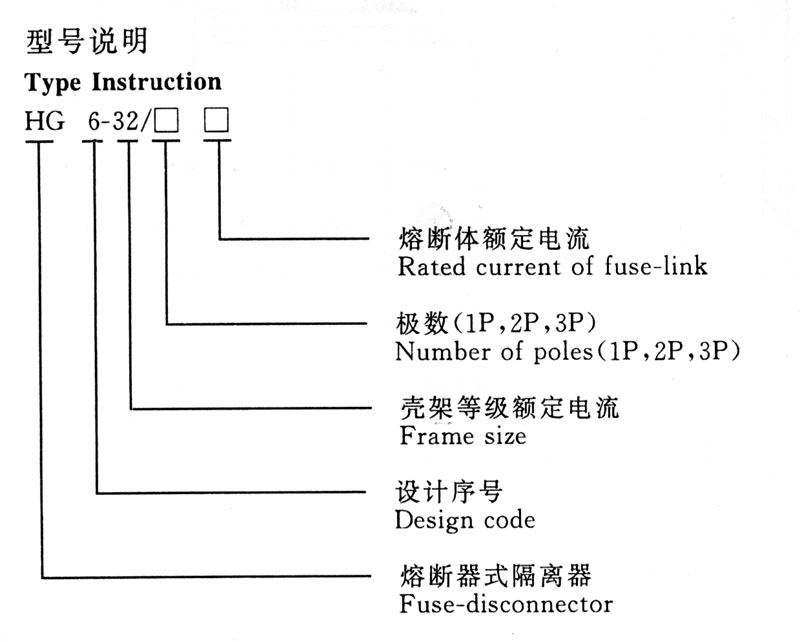

型号说明:
技术数据: Technical parameters
|
额定电压 Rated voltage |
230/400V |
|
额定频率 Rated frequency |
50HZ |
|
壳架等级额定电流 Frame size |
32A |
|
额定限制短路电流 Rated conditional short-circuit current |
20000A |
|
使用类别 Utilization category |
AC-20B |
|
配用熔断体规格 Specification of compounded fuse-link |
尺寸Dimension(mm)Φ10.3*38 |
|
额定电流 Rated current(A)2,46,10,16,20,32 |
外形尺寸和安装尺寸:
|
产品类型：
